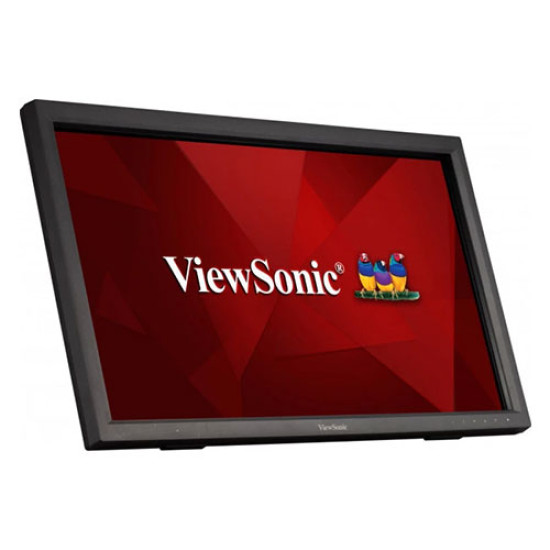

ViewSonic TD2423 24inch IR Touch Monitor

24” IR Touch Monitor
Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

SPECIFICATIONS
Display
Display Size (in.) : 24
Viewable Area (in.) : 23.6
Panel Type : VA Technology
Resolution : 1920 x 1080
Resolution Type : FHD (Full HD)
Static Contrast Ratio : 3,000:1 (typ)
Dynamic Contrast Ratio : 20M:1
Light Source : LED
Brightness : 250 cd/m² (typ)
Colors : 16.7M
Color Space Support : 8 bit (6 bit + Hi-FRC)
Aspect Ratio : 16:9
Response Time (Typical GTG) : 7ms
Response Time (GTG w/OD) : 7ms
Response Time (Typical Tr+Tf) : 25ms
Viewing Angles : 178º horizontal, 178º vertical
Backlight Life (Hours) : 40000 Hrs (Min)
Curvature : Flat
Refresh Rate (Hz) : 75
Blue Light Filter : Yes
Flicker-Free : Yes
Color Gamut : NTSC: 72% size (Typ)
sRGB : 104% size (Typ)
Pixel Size : 0.272 mm (H) x 0.272 mm (V)
Touch Screen : IR, 10-point multi-touch
Surface Treatment : Glossy, Hard Coating (7H)
Cover Glass Thickness : 1.85mm

Compatibility
PC Resolution (max) : 1920x1080
Mac® Resolution (max) : 1920x1080
PC Operating System : Windows 7/8.1/10/11 certified; macOS tested
Mac® Resolution (min) : 1920x1080

Connector
VGA : 1
USB 2.0 Type A : 2
USB 2.0 Type B : 1
3.5mm Audio In : 1
3.5mm Audio Out : 1
HDMI 1.4 : 1
DVI-D : 1
Power in : 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers : 2Watts x2

Power
Eco Mode (Conserve) : 11.5W
Eco Mode (optimized) : 13.5W
Consumption (typical) : 15.5W
Consumption (max) : 16.5W
Voltage : AC 100-240V
Stand-by : 0.5W
Power Supply : Internal Power Supply

Additional Hardware
Kensington Lock Slot : 1
Cable Organization : Yes

Controls
Physical Controls : 1, 2, Up, Down, Power
On Screen Display : Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Operating Conditions
Temperature : 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing) : 20% to 90%

Wall Mount
VESA Compatible : 100 x 100 mm

Input Signal
Frequency Horizontal : 24 ~ 82KHz
Frequency Vertical : 50 ~ 75Hz

Video Input
Digital Sync : TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync : Separate/Composite/SOG - RGB Analog

Ergonomics
Tilt (Forward/Back) : 20º / 40º

Weight (imperial)
Net (lbs) : 11.5
Net Without Stand (lbs) : 10.3
Gross (lbs) : 15.4

Weight (metric)
Net (kg) : 5.2
Net Without Stand (kg) : 4.7
Gross (kg) : 7

Dimensions (imperial) (wxhxd)
Packaging (in.) : 25.4 x 16.6 x 6.5
Physical (in.) : 22.5 x 13.7 x 4
Physical Without Stand (in.) : 22.5 x 13.7 x 2.4

Dimensions (metric) (wxhxd)
Packaging (mm) : 645 x 422 x 166
Physical (mm) : 571 x 348 x 101
Physical Without Stand (mm) : 571 x 348 x 61

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
