Thermaltake Divider 500 TG Air Snow White Mid Tower Case (CA-1T4-00M6WN-02)

Divider 500 TG Air Snow ATX Mid Tower Chassis
Thermaltake designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 500 TG Air Snow Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside. Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the air edition comes with two airflow-optimized mesh panels at the front and top for massive airflow. The Divider 500 TG Air Snow Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.

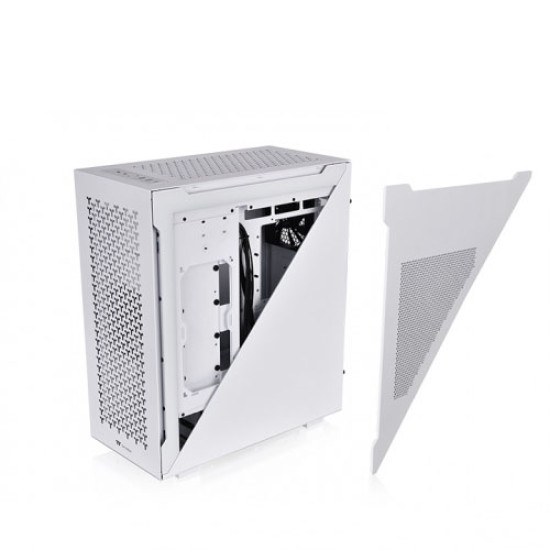

Avant-Grade Style Side Panels – Left Side
The exceptional feature of the Divider 500 TG Air Snow is that the four symmetrical triangular pieces are mixed and matched. We provide an extra triangular tempered glass window on the left side which enriches the appearance of the case when building the system. For example, users can can stick to the default form or have two triangular tempered glass windows on the left side, creating various viewing flavors.

Avant-Grade Style Side Panels – Right Side
The extra triangular mesh panel on the right side enriches the appearance of the case as well as when building in the case. For example, users can stick to the default form or have two steel panels on the right side when installing fans on the motherboard side for air intake or exhaust depending on the PC layout

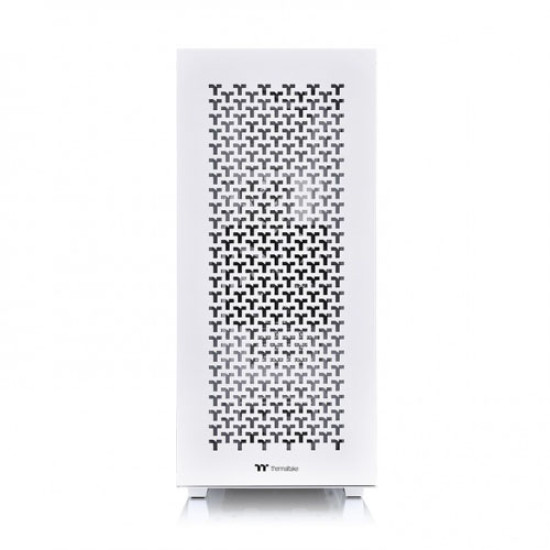

Airflow-Optimized Panels
The Divider 500 TG Air Snow comes with two large airflow-optimized mesh panels at the front and top for massive airflow performance.

PSU Cover & Riser GPU Support Bracket
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.

Excellent Dust Filtration
The Divider 500 TG Air Snow has well-designed dust filtration. All removable filters on inner right side, at the font, top, and base provide excellent dust protection and dirt reduction, ensuring a dust-free environment.

Air Intake and Exhaust
The cooling performance of the Divider 500 TG Air Snow is supurb. Two large mesh panels at the front and top enable massive airflow. Moreover, the gap between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts could be located on the right side of the steel panel (two steel panels), rear, and top of the case depending on user’s overall PC layout design. The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.

Idle and Full-load Temperature
To let our customers better understand the thermal performance of the Divider 500 TG Air ATX Mid Tower Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Excellent Hardware Support & Cooling Solution
The Divider 500 TG Air Snow has excellent hardware expansion. It can support a CPU cooler with a maximum height of 170mm (two TG), VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), total of two 3.5” HDDs and five 2.5” SSDs or a total of seven 2.5” SSDs. When it comes to the cooling solution, the Divider 500 TG Air Snow comes preinstalled with one 120mm standard front fan for cold Air Snow intake and one 120mm standard rear for hot Air Snow extraction. The case can hold up to two 140mm fans at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 500 TG Air Snow is optimized for Air Snow cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 240mm on the top and on motherboard side, and a 120mm at the rear.

Technical Details

Brand : Thermaltake
Model : CA-1T4-00M6WN-02

Specification

CASE TYPE : Mid Tower
DIMENSION (H X W X D) : 530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch)
NET WEIGHT : 10.29 kg / 22.69 lbs.
SIDE PANEL : 3mm Tempered Glass x 2
COLOR : White
MATERIAL : SPCC

COOLING SYSTEM
Front(intake):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1

DRIVE BAYS
2 x 3.5”, 5 x 2.5” or 7 x 2.5”

EXPANSION SLOTS : 7 (Rotatable Patented Design)
MOTHERBOARDS : 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
I/O PORT : USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU : Standard PS2 PSU (optional)

FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm

RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm
