Noctua NH-L12S CPU Cooler

The NH-L12S is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. ‌While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L12 is recommended for your CPU.

Based on the award-winning NH-L12
Having received more than 200 awards and recommendations from leading international hardware websites and magazines, the NH-L12 has become an established reference for low-profile 120mm top-flow coolers. Equipped with the new NF-A12x15 fan, the new S-version provides more flexibility and improved performance in low-profile mode

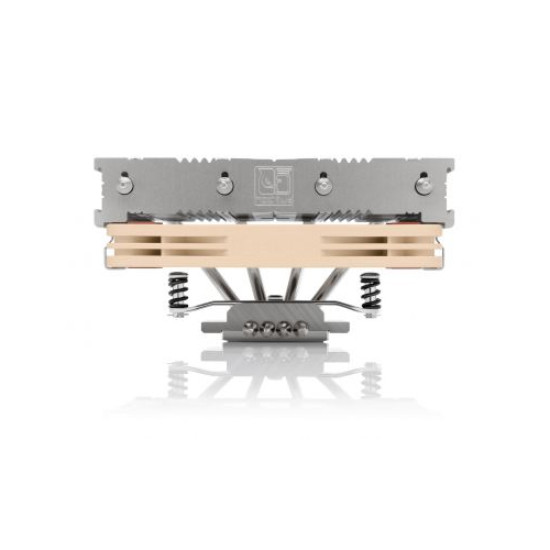

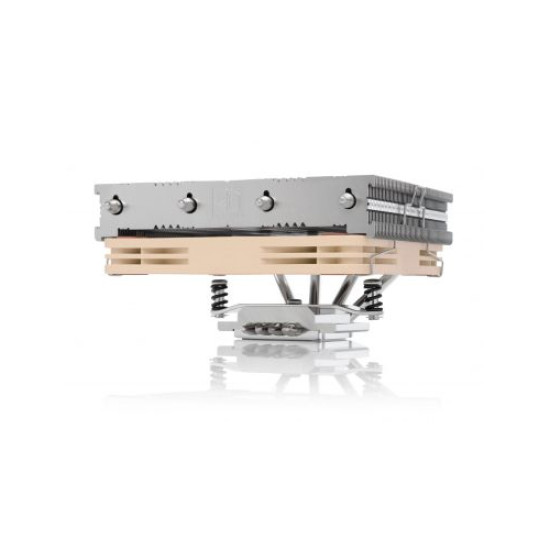

Low-profile mode
Run with the NF-A12x15 fan installed underneath the fin stack, the NH-L12S stands only 70mm tall. The fan can be installed blowing upwards or blowing downwards in order to match the airflow direction inside the case.

High-clearance mode
Run with the NF-A12x15 fan installed on top, the NH-L12S provides extended clearance underneath the fin stack. This way, it is fully compatible with chipset coolers and RAM modules with heat-spreaders of up to 48mm in height (vs. 35mm in low-profile mode).

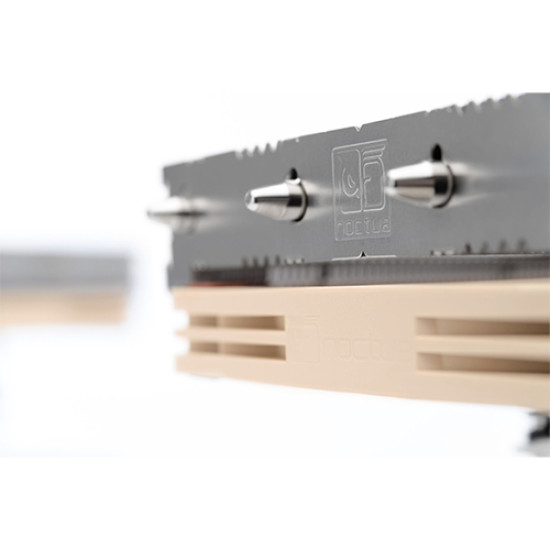

NF-A12x15 slim 120mm premium fan
Featuring sophisticated aerodynamic optimisations such as Flow Acceleration Channels, the NF-A12x15 is a premium-grade slim 120mm fan. Its outstanding efficiency allows the NH-L12S to provide even better performance than the previous model with its 92mm fan.

120x25mm fan support
The fan clips supplied with the NH-L12S work not only with the slim NF-A12x15 fan but also with 25mm thick 120mm fans. Users who have extra room inside their cases can thus boost the cooler’s performance by using a standard 120x25mm fan on top (increases total height to 95mm).

SecuFirm2™ mounting system
Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3), LGA2066 and AMD (AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+), the SecuFirm2™ mounting included with the NH-L12S guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the cooler can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound
Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Technical Details

Brand : Noctua
Model : NH-L12S
Height (without fan) : 70 mm
Width (without fan)  : 128 mm
Depth (without fan)  : 146 mm
Weight (without fan)  : 390 g
Height (with fan)  : 70 mm
Width (with fan)  : 128 mm
Depth (with fan)  : 146 mm
Weight (with fan)  : 520 g
NSPR : 88
Max. TDP : see NSPR
Fan compatibility  : 120x120x15 & 120x120x25

Socket compatibility
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required)

Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

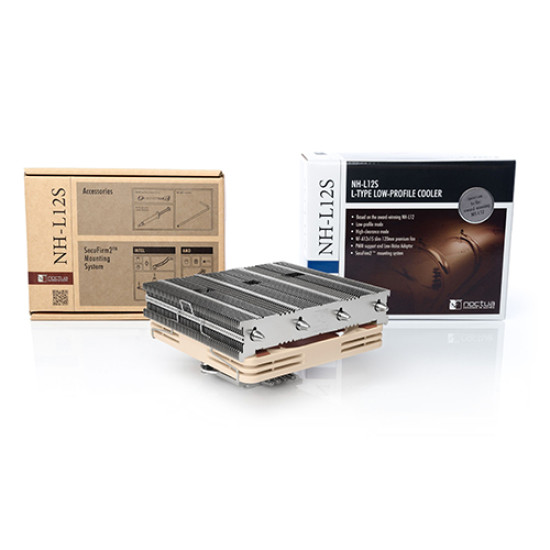

Scope of delivery
1x NF-A12x15 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ mounting kit
Noctua metal case-badge

FAN Specification
Model : 1x Noctua NF-A12x15 PWM
Bearing : SSO2
Max. rotational speed (+/- 10%): 1850 RPM
Max. rotational speed with L.N.A. (+/- 10%) :1400 RPM
Min. rotational speed (PWM, +/-20%) :450 RPM
Max. airflow :94,2 m³/h
Max. airflow with L.N.A. :70,8 m³/h
Max. acoustical noise :23,9 dB(A)
Max. acoustical noise with L.N.A. :16,8 dB(A)
Input power :1,56 W
Voltage range: 12 V
MTTF: > 150.000 h
