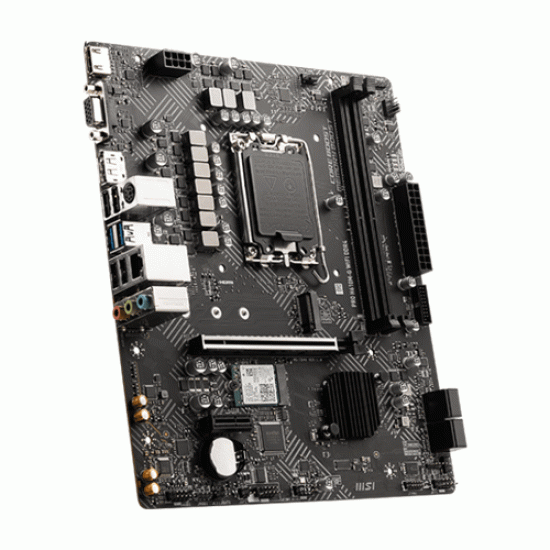

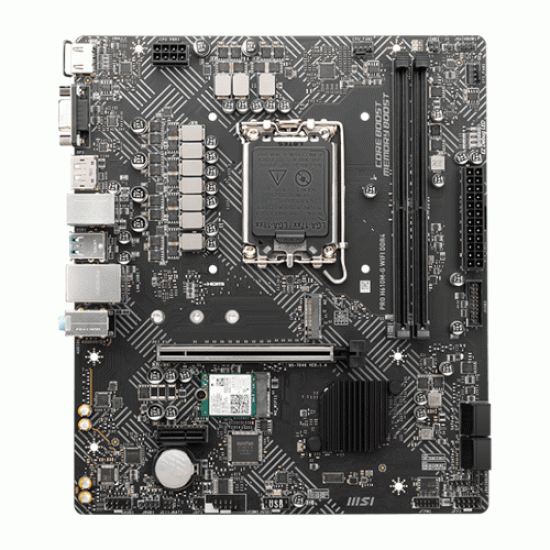

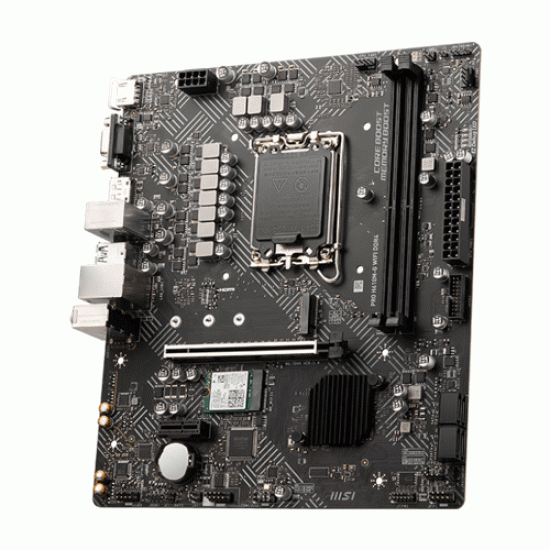

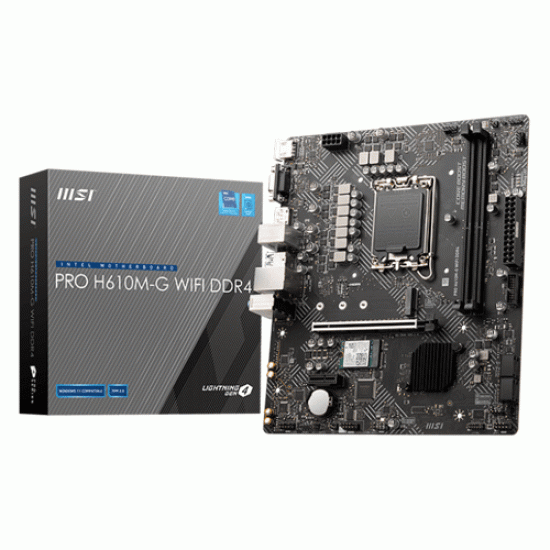

MSI PRO H610M-G WIFI DDR4 Intel Motherboard

MSI PRO H610M-G WIFI DDR4 Intel Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

LOW LATENCY GAMING LAN POWERED BY INTEL
Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking

Features
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Wireless and Bluetooth: Intel® Wi-Fi 5, Bluetooth 4.2

Technical Detail
Brand : MSI
Model : H610M-G

Technical Spec
SOCKET : 1700
CHIPSET : Intel® H610 Chipset
MEMORY CHANNEL : Dual
DIMM SLOTS : 2
MAX MEMORY (GB) : 64
PCI-E X16 : 1
PCI-E X1 : 1
SATAIII : 4
M.2 SLOT : 1
TPM (HEADER) : 1
WIFI & BLUETOOTH : Intel® Wi-Fi 5, Bluetooth 4.2

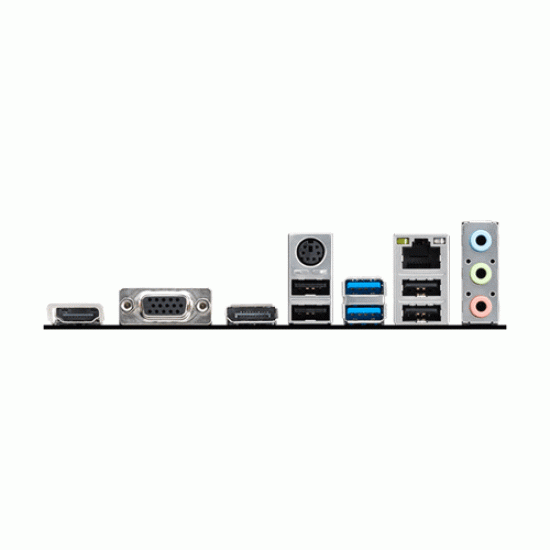

USB 3.2 PORTS (FRONT) : 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) : 2
USB 2.0 PORTS (REAR) : 4
AUDIO PORTS (REAR) : Realtek® ALC897 Codec
DISPLAYPORT : 1
VGA : 1
HDMI : 1
DIRECTX : 12
OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR : M-ATX
