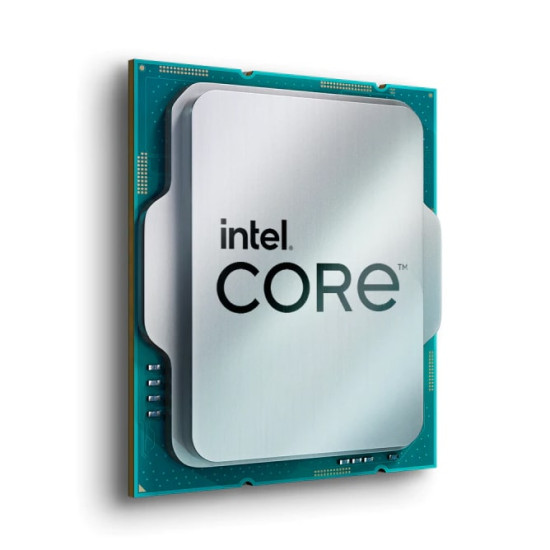

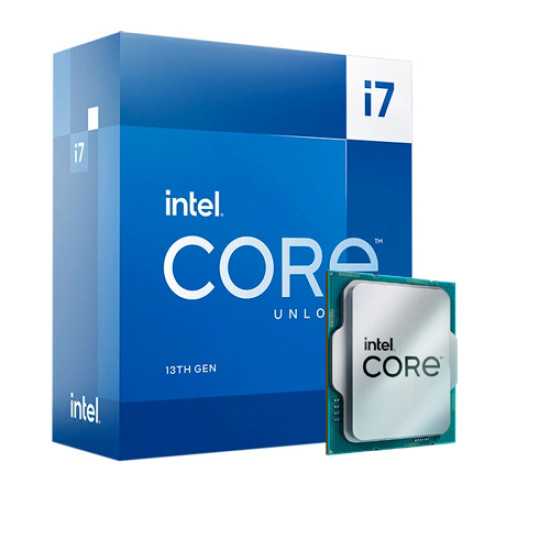

Intel Core i7-13700K Processor

Intel Core i7-13700K Processor
These processors power high-end PCs with excellent CPU performance for discrete-level graphics and AI acceleration.

Performance Where You Need It Most
Get the performance you need, where you need it—whether you’re a gamer, creator, streamer, or everyday user.

Do More with the Fastest Chip We’ve Ever Built
Advancing Performance Hybrid Architecture
13th Gen Intel Core processors advances performance hybrid architecture1 with up to eight Performance-cores (P-core) and up to 16 Efficient-cores (E-core), combined with workloads intelligently routed by Intel® Thread Director.

Built for Modern Gaming
Built for gamers looking for maximum performance to play the latest games, while also having the capabilities to tackle other workloads. New 13th Gen Intel Core processor-based PCs make it all possible.

Superior Creating Experience
The 13th Gen Intel® Core processor family offers faster P-cores and more E-cores with support for DDR4/DDR5 and PCIe 4.0/5.0. That provides a platform that can max out multitasking and choice for configurability.

Customize for What You Do Every Day
13th Gen Intel Core™ processors deliver highly flexible architecture and industry-leading tools for the ultimate in performance customization.

Technical Details

Brand : Intel
Model : Core i7-13700K

Specifications
CPU Specifications
Total Cores : 16
# of Performance-cores : 8
# of Efficient-cores : 8
Total Threads : 24
Max Turbo Frequency : 5.40 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency : ‡ 5.40 GHz
Performance-core Max Turbo Frequency  : 5.30 GHz
Efficient-core Max Turbo Frequency : 4.20 GHz
Performance-core Base Frequency : 3.40 GHz
Efficient-core Base Frequency : 2.50 GHz
Cache 30 MB Intel® Smart Cache
Total L2 Cache : 24 MB
Processor Base Power : 125 W
Maximum Turbo Power  : 253 W

Supplemental Information
Embedded Options Available : No

Memory Specifications
Max Memory Size (dependent on memory type)  : 128 GB
Memory Types : Up to DDR5 5600 MT/s,Up to DDR4 3200 MT/s
Max # of Memory Channels : 2
Max Memory Bandwidth  : 89.6 GB/s
ECC Memory Supported : Yes

Processor Graphics
Processor Graphics :  Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.60 GHz
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units  : 32
Max Resolution (HDMI) :  4096 x 2160 @ 60Hz
Max Resolution (DP) :  7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) :  5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support  : 3.0
Multi-Format Codec Engines  : 2
Intel® Quick Sync Video  : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported :4
Device ID : 0xA780

Expansion Options
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision  : 5.0 and 4.0
PCI Express Configurations :  Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes  : 20

Package Specifications
Sockets Supported  : FCLGA1700
Max CPU Configuration : 1
TJUNCTION  : 100°C

Advanced Technologies
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost)  : Yes
Intel® Speed Shift Technology  : Yes
Intel® Turbo Boost Max Technology 3.0 ‡  : Yes
Intel® Turbo Boost Technology  :  2.0
Intel® Hyper-Threading Technology :  Yes
Intel® 64  :  Yes
Instruction Set  : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States  : Yes
Enhanced Intel SpeedStep® Technology  : Yes
Thermal Monitoring Technologies  : Yes
Intel® Volume Management Device (VMD)  : Yes

Security & Reliability
Intel® Standard Manageability (ISM)  : Yes
Intel® Control-Flow Enforcement Technology : Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology  : Yes
Execute Disable Bit :  Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) :  Yes
Intel® Virtualization Technology for Directed I/O (VT-d) :  Yes
Intel® VT-x with Extended Page Tables (EPT) :  Yes
