Fractal Design Mood M-ITX Mini Tower Cabinet Light Gray (FD-C-MOD1N-01)

Minimized footprint

Streamline your desk environment with a low-volume case in a space-saving pillar design format.

Easily accessible

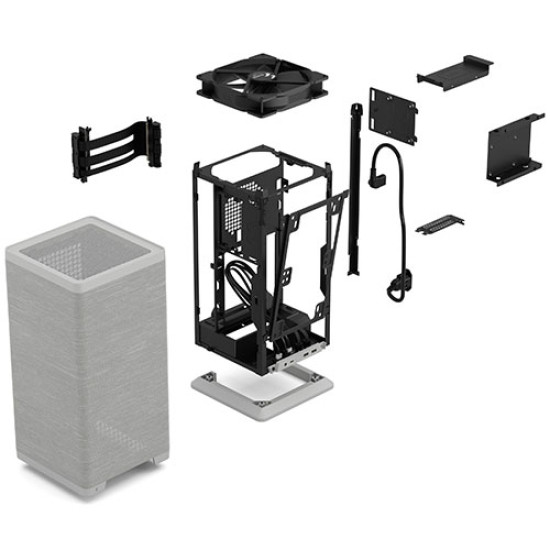

Pop out the back panel and simply slide off the fabric-covered enclosure for full access to your build.

Discreet design

Created with breathable fabric in a clean shape and color palette to harmonize with your home.

Front-facing I/O

Start up and connect effortlessly with a front-facing I/O panel which includes a USB Type C 20 Gbps port.

Cool operation

Enjoy effective cooling with the included 180 mm Dynamic fan which moves air up through the case.

Designed to perform

Choose a graphics card up to 325 mm in length and connect it with the included PCIe 4.0 riser cable.

Space for storage

Includes two accessible 2.5” drive brackets with ball catchers and a mount for a 3.5” drive.

Support for cooling

Compatible with radiators up to 280 mm for more ambitious cooling builds or CPU air coolers up to 114 mm in height.

Specifications

5" drive mounts : 1x 3.5” included

Dedicated 2.5" drive mounts : 2x included, 2x positions total

5.25” drive mounts : 0

Expansion slots : 2 slot (2.75)

Front interface

1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0 Type-A (5 Gbps), 1x Combo jack – Audio/Microphone Power button

Total fan mounts : 1x 180 mm 2x 120 mm 2x 140 mm

Front fan : 2x 120/140 mm

Top fan : 1x 180 mm (included)

Rear fan : None

Bottom fan : None

Dust filters : Rear magnetic filter mesh included

Fixed velcro straps : No

Tool-less push-to-lock : Rear panel + 2x SSD 2.5” brackets

Captive thumbscrews : 2x PCIe blanks

Compatability

Motherboard compatibility : mITX

Power supply type : SFX, SFX-L

Front radiator : Up to 280 mm

Top radiator : None

Rear radiator : None

Bottom radiator : None

PSU max length : 130 mm

GPU max length : 325 mm

GPU thickness :  56 mm (2.75 slot)

GPU height : 145 mm (excluding cables) 158 mm (including cables)

CPU cooler max height : 114 mm (from top of IHS)

SFF-Ready Enthusiast GeForce Cards :Yes

Dimensions

Case dimensions (LxWxH) : 212 x 212 x 453 mm

Package dimensions (LxWxH) : 303 x 287 x 580 mm

Net weight : 4.6 kg

Gross weight : 5.9 kg
