Sapphire PULSE AMD Radeon RX 6500 XT 8GB DDR6

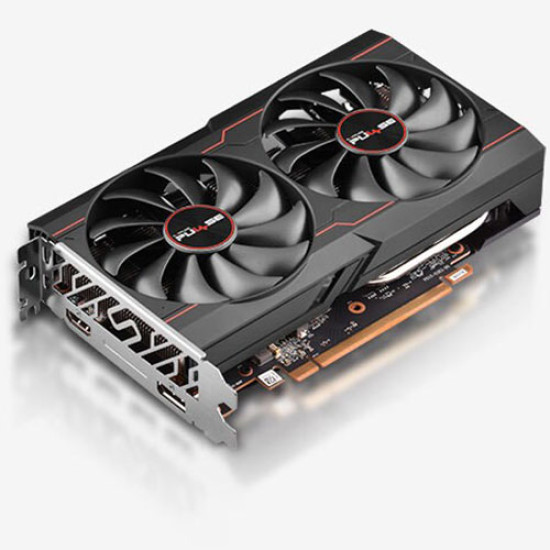

SAPPHIRE PULSE AMD Radeon™ RX 6500 XT

The SAPPHIRE PULSE AMD Radeon™ RX 6500 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

THE ULTIMATE GAME CHANGER

Powerhouse Performance for 1080P Gaming

Specifications

GPU

AMD Radeon™ RX 6500 XT Graphics Card

6nm GPU

AMD RDNA™ 2 Architecture

Engine Clock

Boost Clock: Up to 2825 MHz

Game Clock: Up to 2685 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors : 1024

Infinity Cache : 16MB

Ray Accelerators : 16

Memory Size/Bus : 4GB GDDR6

Memory Clock : 18 Gbps Effective

Displays : Maximum 2 Displays

Resolution

HDMI™: 7680×4320

DisplayPort1.4: 7680×4320

Interface : PCI-Express 4.0 x4

Output

1x HDMI

1x DisplayPort

BIOS Support

UEFI

Game Index : 1080P

Sapphire Features

Premium Digital Power Design

Fuse Protection

Dual-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

Metal Backplate

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA 2 Gaming Architecture

DirectX 12 Ultimate support

AMD Smart Access Memory

AMD Infinity Cache

6nm GPU

PCI Express 4.0 support

AMD FreeSync Technology

DisplayPort 1.4 with DSC

HDMI support

Video Streaming up to 8K

AMD Radeon VR Ready Premium

AMD FidelityFX

AMD Radeon Image Sharpening

AMD Radeon Anti-Lag

AMD Radeon Software

Game Driver Optimizations

Cooler Type

Dual Fans

Form Factor

2 slot, ATX

Dimension: 194(L)X 107(W)X 40(H)mm

Power Consumption : 130W (Board Power)

OS

Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit  operating system required

Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 400 Watt Power Supply

1 x 6-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
