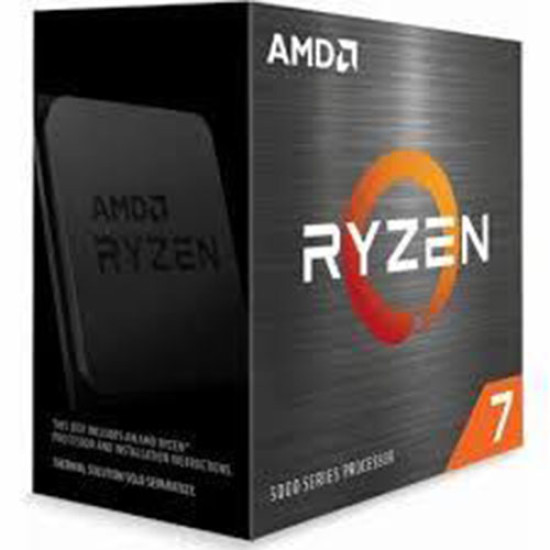

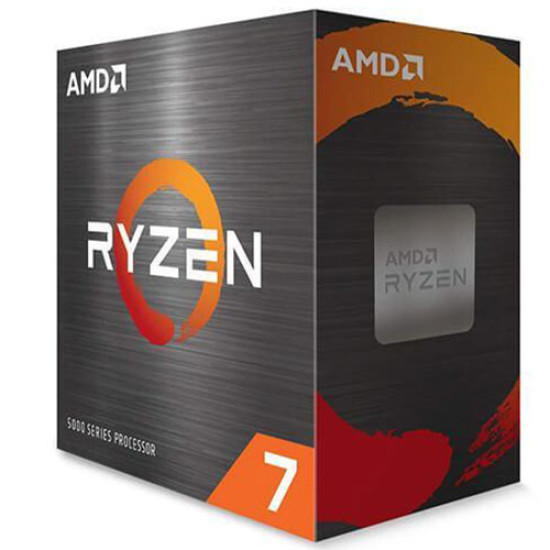

AMD Ryzen 7 5700 3.7GHz Processor

AMD Ryzen 7 5700 is a AM4 Unlocked Processor with 8 CPU Core, 16 Threads, Up to 4.6GHz Boost Clock, 3.7GHz Base Clock, 20MB Cache and Zen 3 Architecture, 65W TDP and DDR4 Memory. This CPU Good for multitasking, content creation, video editing, 3D rendering. AMD Ryzen 7 5700 is an APU and part of the Zen 3 “Cezanne” line up of the AMD Ryzen processors which feature faster clock speeds thanks to improvements in the silicon used by AMD for these processors

Model : AMD Ryzen 7 5700

Platform : Boxed Processor

Market Segment : Mainstream Desktop

Product Family : AMD Ryzen™ Processors

Product Line : AMD Ryzen™ 7 Desktop Processors

Consumer Use : Yes

Former Codename : "Cezanne"

Architecture : "Zen 3"

# of CPU Cores : 8

# of Threads : 16

Max. Boost Clock : Up to 4.6GHz

Base Clock : 3.7GHz

L1 Cache : 512KB

L2 Cache : 4MB

L3 Cache : 16MB

Default TDP : 65W

AMD Configurable TDP (cTDP) : 45-65W

Processor Technology for CPU Cores : TSMC 7nm FinFET

CPU Compute Die (CCD) Size : 180mm²

Package Die Count : 1

Unlocked for Overclocking : Yes

CPU Socket : AM4

Socket Count : 1P

Supporting Chipsets : X570, X470, X370, B550, B450, B350, A520

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB) : AMD Wraith Stealth

Max. Operating Temperature (Tjmax) : 95°C

*OS Support

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support : Yes

Native USB 4 (40Gbps) Ports : 0

Native USB 3.2 Gen 2 (10Gbps) Ports : 4

Native USB 3.2 Gen 1 (5Gbps) Ports : 0

Native USB 2.0 (480Mbps) Ports : 0

Native SATA Ports : 2

PCI Express® Version : PCIe 3.0

Native PCIe® Lanes (Total/Usable) : 24 / 20

Additional Usable PCIe Lanes from Motherboard

AMD X570 16x Gen 3

AMD X470 2x Gen 3

AMD X470 8x Gen 2

NVMe Support : Boot, RAID0, RAID1, RAID10

System Memory Type : DDR4

Memory Channels : 2

System Memory Subtype : UDIMM

System Memory Specification : Up to 3200MT/s

Max Memory Speed

2x1R  DDR4-3200

2x2R  DDR4-3200

4x1R  DDR4-2933

4x2R  DDR4-2667

ECC Support : No

Graphics Capabilities

Integrated Graphics : No

Graphics Model : Discrete Graphics Card Required

Key Features

Supported Technologies

AMD StoreMI Technology

AMD Ryzen™ VR-Ready Premium

Warranty: Three Year Amd India Warranty
