Deepcool AN400 Low-Profile CPU Cooler (R-AN400-SRWNMN-G)

AN400

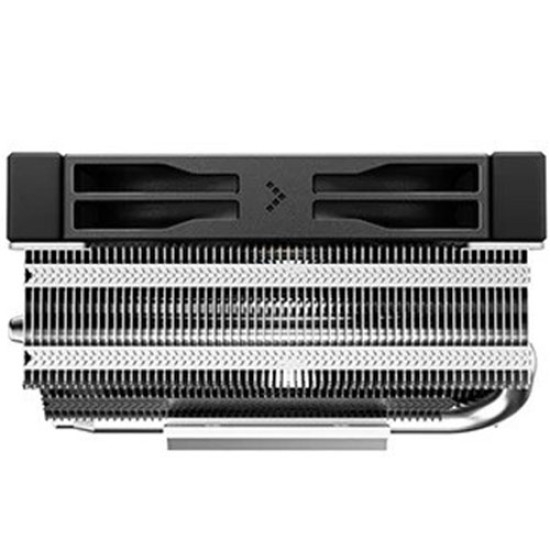

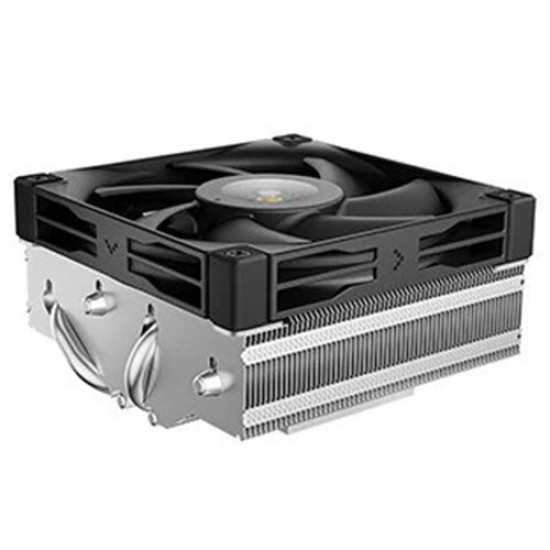

The AN400 is a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 is a great option for everything down to small ITX builds.

Compact And Feature Rich

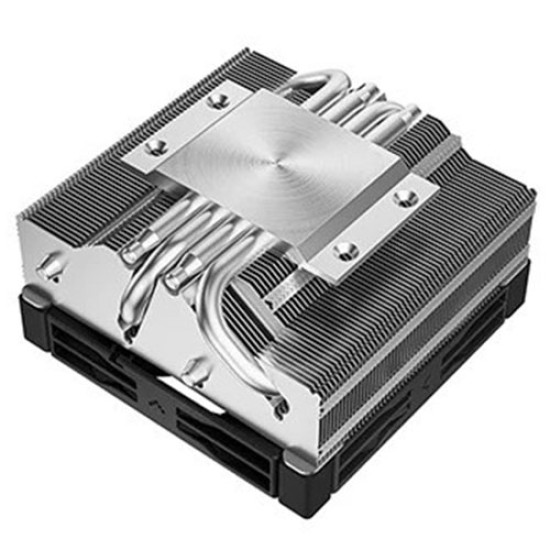

With 62 nickel-plated aluminum fins, 4 optimized heatpipes, and a raised copper coldplate, the AN400 packs a lot of cooling potential in a small 53mm tall CPU cooler.

Simplified Support

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket

Specification

Intel : LGA1851/1700/1200/1151/1150/1155

AMD : AM5/AM4

Product Dimensions : 92×92×52.5 mm(L×W×H)

Heatsink Dimensions ; 94×57×38 mm(L×W×H)

Net Weight : 431.4 g

Heatpipe : Ø6 mm×4 pcs

Fan Dimensions : 92×92×15 mm(L×W×H)

Fan Speed : 500~2950 RPM±10%

Fan Airflow : 31.18 CFM

Fan Air Pressure : 4.8 mmAq

Fan Noise : ≤23.2 dB(A)

Fan Connector : 4-pin PWM

Bearing Type : Fluid Dynamic Bearing

Fan Rated Voltage : 12 VDC

Fan Rated Current : 0.45 A

Fan Power Consumption ; 5.4 W

LED Type : White LED
