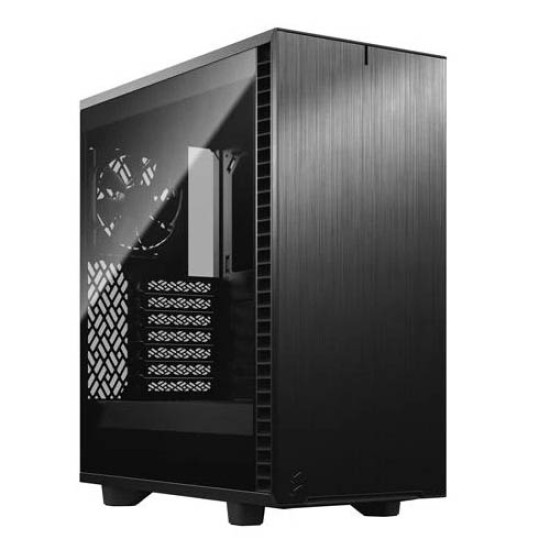

Fractal Design Define 7 Compact Black Tempered Glass Dark Tint (FD-C-DEF7C-02)

Define 7 Compact Dark Tempered Glass (Black)
The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

• Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
• Fits GPUs up to 360 mm with a 240 mm radiator in the top
• Top panel effortlessly swaps from solid steel to filtered ventilation

A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet
Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling
Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm
1 x 120 mm and 1 x 140 mm Dynamic X2 fans included
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate

More in store
A pair of SSDs are easily mounted straight on the PSU shroud

Front, top and base
Easy-to-clean high airflow nylon filters

Open access
Remove the entire top to build and route with zero hindrance.

Technical Details

Brand :  Fractal Design
Model : FD-C-DEF7C-02

Specifications
3.5"/2.5" Universal drive brackets : 2
Dedicated 2.5" drive brackets : 2 trays included, 4 positions total
Expansion slots : 7
Front ports : 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts : 7 x 120 or 4 x 140 mm and 2 x 120 mm
Front fan : 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14 included)
Top fan : 2 x 120 or 2 x 140 mm
Rear fan : 1 x 120 mm, (1 x Dynamic X2 GP-12 included)
Bottom fan : 1 x 120 mm (requires removal of HDD cage)
Dust filters : Top, 2 x front, full length bottom
Fixed velcro straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD brackets, SSD brackets, PSU bracket
Left side panel : Tempered glass
Right side panel : Industrial sound-damped steel

Compatibility
Motherboard compatibility : ATX / mATX / mITX
Power supply type : ATX
PSU max length : 200 mm total (165 mm w/ HDD cage and front fan)
GPU max length : 341 mm (360 mm without front fan)
CPU cooler max height : 169 mm
Front radiator : Up to 360/280 mm (max 145 mm width)
Top radiator : Up to 240 mm
Rear radiator : 120 mm
Bottom radiator : 120 mm (requires removal of HDD cage)
Cable routing space : 17-28 mm

Dimensions
Case dimensions (LxWxH) : 427 x 210 x 474 mm
Case dimensions w/o feet/protrusions/screws : 415 x 210 x 451 mm
Package dimensions (LxWxH) : 536 x 310 x 521 mm
Net weight : 8.76 kg
Package weight : 11.04 kg
Volume : 39.3 liters

Package contents
Define 7 Compact, Accessory box, User manual, Ventilated top panel
