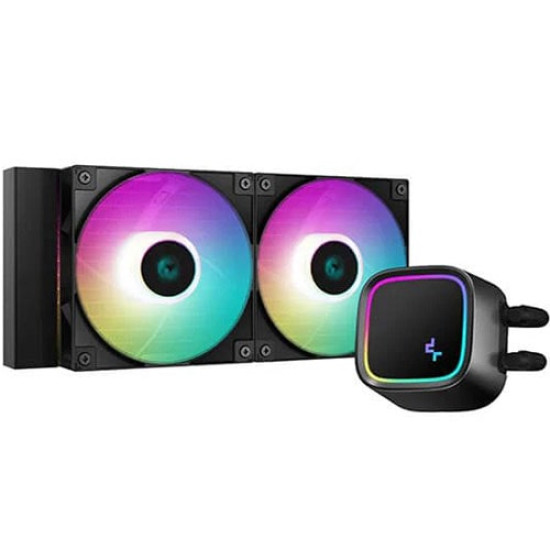

Deepcool LE520 240mm ARGB Liquid Cooler (R-LE520-BKAMMN-G-1)

The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.

POWERFUL HEAT DISSIPATION

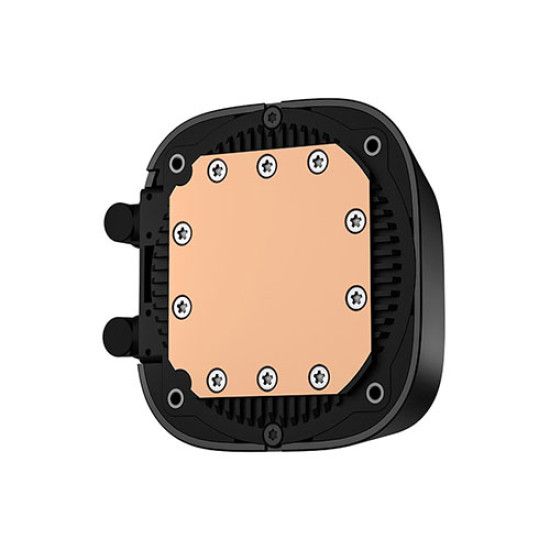

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.

NEW SERIES DESIGN

The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard syncronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.

ANTI-LEAK TECHNOLOGY

The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors

Technical Detail
Brand : Deepcool
Modal : R-LE520-BKAMMN-G-1

Technical Spec
Application For
Intel : LGA1700/1200/1151/1150/1155
AMD : AM5/AM4
Net Weight : 1238 g

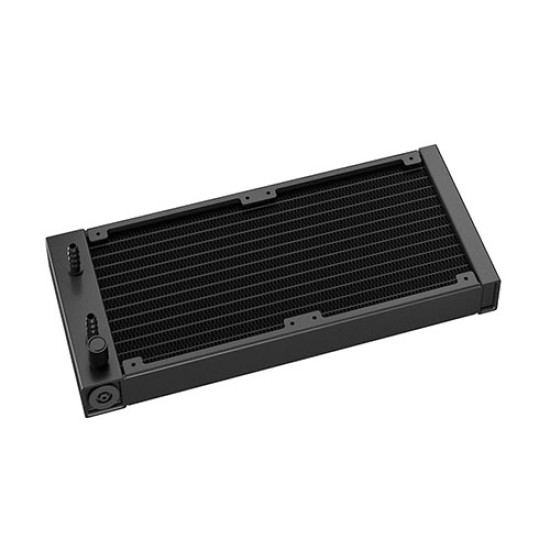

Radiator Dimensions : 282×120×27 mm(L×W×H)
Radiator Material : Aluminum
Tube length : 410 mm(L×W×H)
Pump Dimensions : 91×80×52 mm(L×W×H)
Pump Speed : 2400 RPM±10%
Pump Noise : 17.8 dB(A)
Pump Connector : 3-pin
Pump Rated Voltage : 12 VDC
Pump Rated Current : 0.2 A
Pump Power Consumption : 2.4 W
Fan Dimensions : 120×120×25 mm(L×W×H)
Fan Speed : 500~2250RPM±10%
Fan Airflow : 85.85 CFM
Fan Air Pressure : 3.27 mmAq
Fan Noise : ≤32.9 dB(A)
Fan Connector : 4-pin PWM
Bearing Type : Hydro Bearing
Fan Rated Voltage : 12 VDC
Fan Rated Current : 0.25 A
Fan Power Consumption : 3.0 W
LED Type : Addressable RGB LED
LED Connector : 3-pin(+5V-D-G)
LED Rated Voltage : 5 VDC
LED Power Consumption : 2.25 W（PUMP）/ 2.1 W（FAN×2）
EAN : 6933412728047
P/N : R-LE520-BKAMMN-G-1
