Cooler Master MasterBox NR200P Mini ITX Case - Black (MCB-NR200P-KGNN-S00)

MasterBox NR200P

BIG FEATURES, Small Size

Limited Size, Unlimited Options
Unrestricted Cooling Potential
Triple-slot GPU support and Included Vertical Riser Cable
Easy, Tool-free access
360 Degree Accessibility
Multiple motherboard support options
Out-of-the-box Custom Cooling Support
High quality materials

Style without sacrifice
The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.

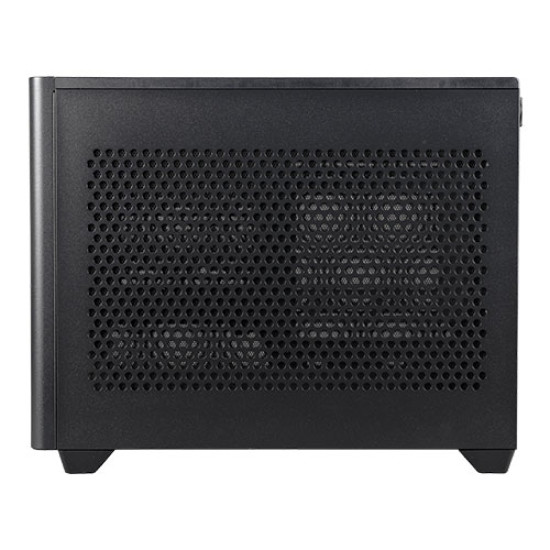

Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilize the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.

Limited Size, Unlimited Options
The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.

Unrestricted Cooling Potential
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.

Triple-slot GPU support and Included Vertical Riser Cable
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

Easy, Tool-free access
All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.

360 Degree Accessibility
Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

High quality materials
Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditions

Out-of-the-box Custom Cooling Support
Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.

Specifications
Model Number : MCB-NR200P-KGNN-S00
Series : MasterBox Series
Size : Mini ITX
Color : Black
Materials : Steel, Plastic, Mesh, Tempered Glass
Dimensions (L x W x H) : 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
Volume (exlc. Protrusions) : 18.25L
Motherboard Support : Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
Expansion Slots : 3
5.25" Drive Bays : 0
3.5" Drive Bays : 1 (Max. 2)
2.5" / 3.5" Drive Bays (combo) : 1
2.5" Drive Bays : 2 (Max. 3)
I/O Panel : 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Top : 2x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans - Front : N/A
Pre-installed Fans - Rear : N/A
Pre-installed Fans - Bottom : N/A
Fan Support - Top : 2x 120mm
Fan Support - Rear : 1x 92mm
Fan Support - Bottom : 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support - Side : 2x 120/140mm
Radiator Support - Top : N/A
Radiator Support - Rear : 92mm (not compatible with vertical GPU installation)
Radiator Support - Bottom : 120mm, 240mm, (recommended for custom loops only)
Radiator Support - Side : 120mm, 140mm, 240mm, 280mm, (max width 141mm, not compatible with vertical GPU installation)
Clearance - CPU Cooler : 155mm, 76mm (GPU in vertical position)
Clearance - PSU : 130mm
Clearance - GFX : L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters : Top, Bottom, Left side, Right side
Power Supply Support : SFX, SFX-L
Weight : 5.1 kg
Accessories : 1x PCIe 3.0 x16 riser cable

Note:
Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
