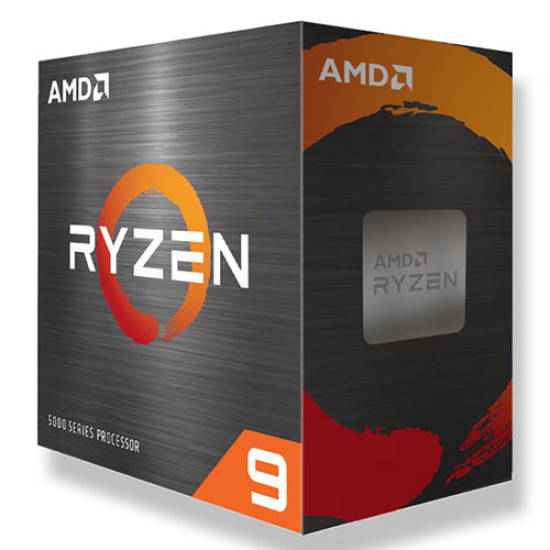

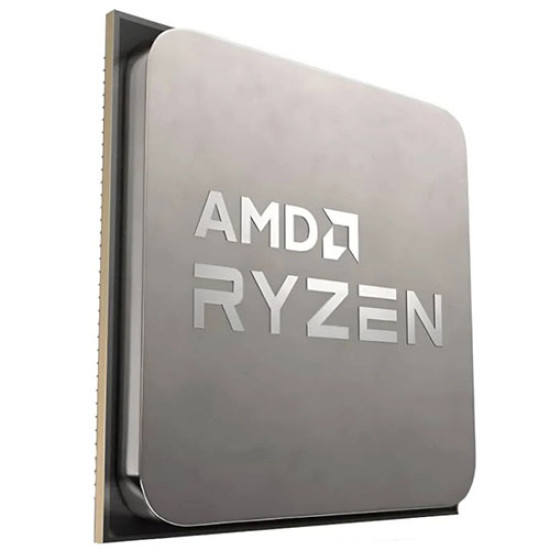

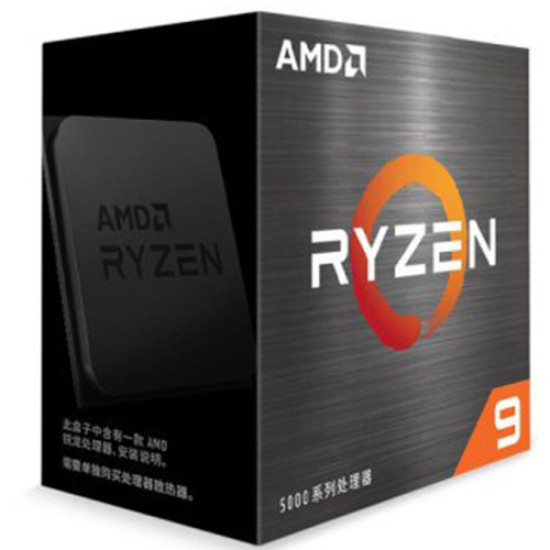

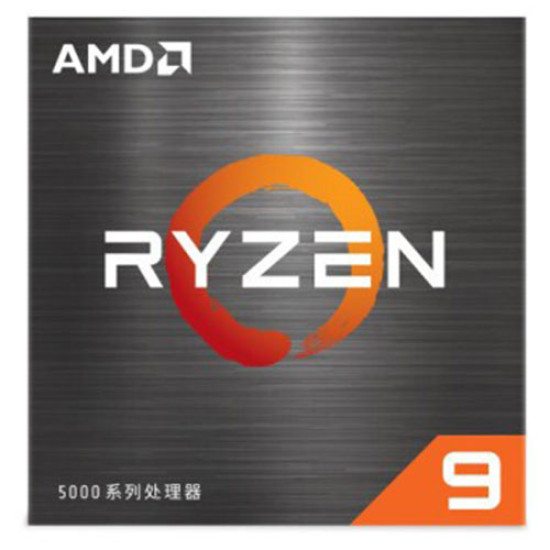

AMD Ryzen 9 5900XT 3.3GHz Processor

Precision Boost Overdrive

Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.

Specifications

Name : AMD Ryzen™ 9 5900XT

Family : Ryzen

Series : Ryzen 5000 Series

Form Factor : Boxed Processor , Desktops

Market Segment : Enthusiast Desktop

Consumer Use : Yes

Commercial Use : No

Regional Availability : Global

Former Codename : Vermeer

Architecture : Zen 3

# of CPU Cores : 16

Multithreading (SMT) : Yes

# of Threads : 32

Max. Boost Clock  : Up to 4.8 GHz

Base Clock  : 3.3 GHz

L1 Cache : 1024 KB

L2 Cache : 8 MB

L3 Cache : 64 MB

Default TDP : 105W

Processor Technology for CPU Cores : TSMC 7nm FinFET

Processor Technology for I/O Die : 12nm (Globalfoundries)

CPU Compute Die (CCD) Size : 74mm²

I/O Die (IOD) Size : 125mm²

Package Die Count : 3

Unlocked for Overclocking  : Yes

CPU Socket : AM4

Supporting Chipsets : X570 , B550 , A520 , X470 , B450

CPU Boost Technology : Precision Boost 2

Instruction Set : x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB) : Not Included

Max. Operating Temperature (Tjmax) : 90°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports : 4

Native USB 3.2 Gen 1 (5Gbps) Ports : 0

Native USB 2.0 (480Mbps) Ports : 0

Native SATA Ports : 2

PCI Express® Version : PCIe® 4.0

Native PCIe® Lanes (Total/Usable) : 24 , 20

Additional Usable PCIe Lanes from Motherboard

amd_x570 16x Gen 4

amd_x470 2x Gen 3, 8x Gen 2

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type : DDR4

Memory Channels : 2

Max. Memory : 128 GB

System Memory Subtype: UDIMM

Max Memory Speed

2x1R DDR4-3200

2x2R DDR4-3200

4x1R DDR4-2933

4x2R DDR4-2667

Supported Technologies

AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
