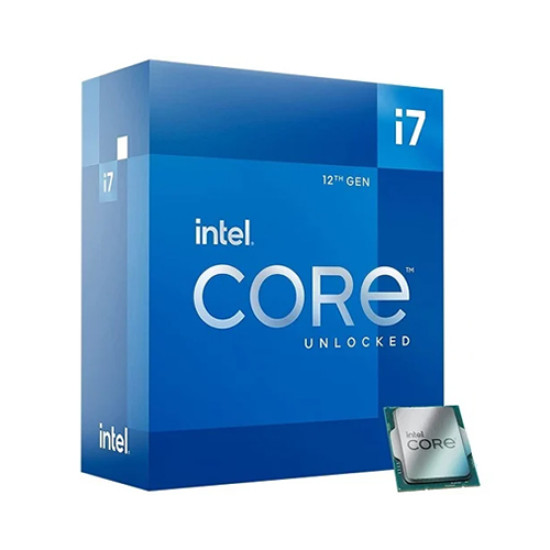

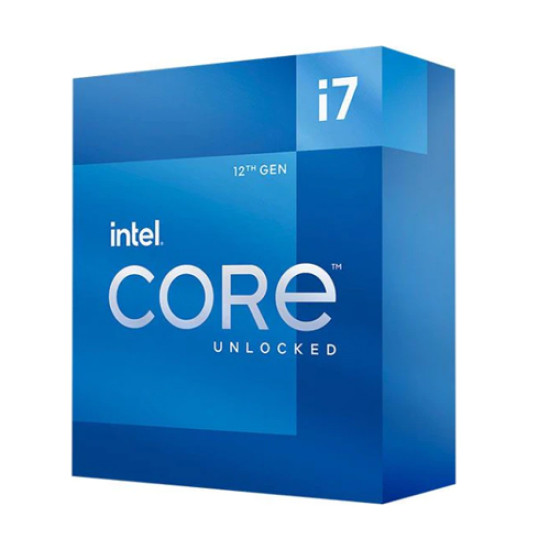

Intel Core i7-12700K 3.60 GHz Processor

The Intel Core i7-12700K 3.6 GHz 12-Core LGA 1700 Processor into your desktop computer system. Built using a Hybrid Core architecture with the Intel 7 process, this 12th generation desktop processor’s 12 cores combine the performance of four Efficient-cores and eight 3.6 GHz Performance-cores. The low-voltage Efficient-cores handle background tasks for multitasking while the Performance-cores provide speed for demanding applications and games.

Technical Details

Brand : Intel
Model : Core i7-12700K

Specifications
Essentials
Product Collection : 12th Generation Intel® Core™ i7 Processors
Code Name : Products formerly Alder Lake
Vertical Segment : Desktop
Processor Number : i7-12700K
Use Conditions : PC/Client/Tablet

CPU Specifications
Total Cores : 12
# of Performance-cores : 8
# of Efficient-cores : 4
Total Threads : 20
Max Turbo Frequency : 5.00 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency  : 5.00 GHz
Performance-core Max Turbo Frequency : 4.90 GHz
Efficient-core Max Turbo Frequency : 3.80 GHz
Performance-core Base Frequency : 3.60 GHz
Efficient-core Base Frequency : 2.70 GHz
Cache : 25 MB Intel® Smart Cache
Total L2 Cache : 12 MB
Processor Base Power : 125 W
Maximum Turbo Power : 190 W

Supplemental Information
Embedded Options Available : No

Memory Specifications
Max Memory Size (dependent on memory type) : 128 GB
Max # of Memory Channels : 2
Max Memory Bandwidth : 76.8 GB/s

Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Processor Graphics
Processor Graphics  : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.50 GHz
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units : 32
Max Resolution (HDMI) : 4096 x 2160 @ 60Hz
Max Resolution (DP) : 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel) ; 5120 x 3200 @ 120Hz
DirectX Support : 12
OpenGL Support : 4.5
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0x4680
OpenCL* Support : 2.1

Expansion Options
Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes : 20

Package Specifications
Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) : Yes
Intel® Optane™ Memory Supported : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Max Technology 3.0 : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes

Security & Reliability
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBE) : Yes
Intel® Control-Flow Enforcement Technology : Yes
