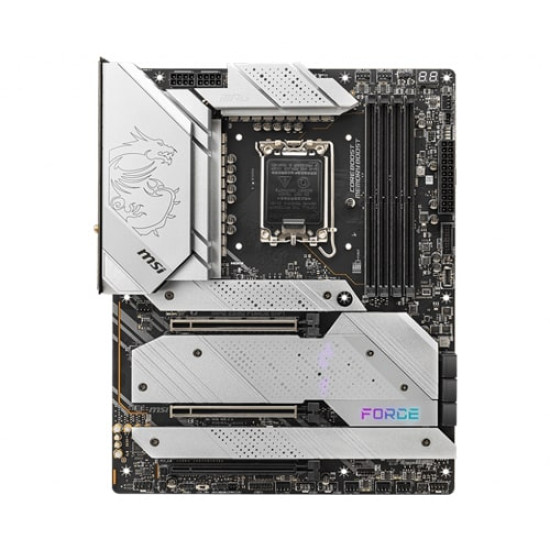

MSI MPG Z690 FORCE WIFI Intel Motherboard

MPG Z690 FORCE WIFI
*Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
*Supports DDR5 Memory, up to 6666+(OC) MHz
*Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
*Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
*Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
*MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
*2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
*AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
*High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material

M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

LATEST DDR5 MEMORY
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 FORCE WIFI is ready to deliver the world class memory performance.

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.

LIGHTNING GEN 5 PCI-E
MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation.

FAST AND FUTURE-READY STORAGE
MSI Z690 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

Technical Details
Brand : MSI
Model : MPG Z690 FORCE WIFI
CPU (MAX SUPPORT) : i9
SOCKET : 1700
CHIPSET : Intel® Z690 Chipset
MEMORY CHANNEL : Dual
DIMM SLOTS : 4
MAX MEMORY (GB) : 128
PCI-E X16 : 3
SATAIII : 6
M.2 SLOT : 5
RAID : 0/1/5/10
LAN : 1x Intel® I225-V 2.5G LAN
WIFI & BLUETOOTH : Intel® Wi-Fi 6E module
USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 5(Gen 2, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 4
DIMENSION : 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC4080 Codec)
DISPLAYPORT : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR : ATX
CROSSFIRE : Y
OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
