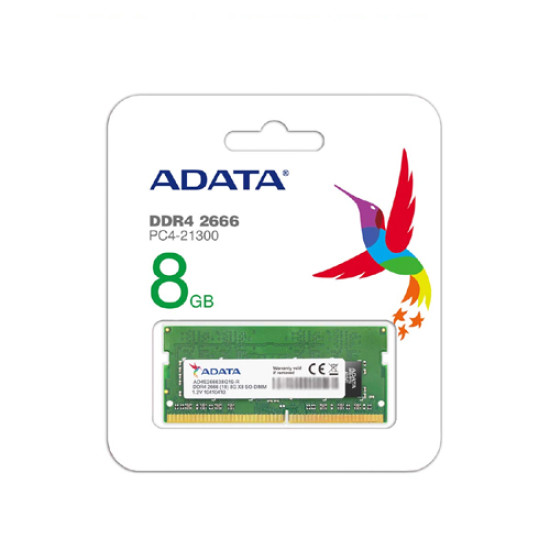

Adata Premier 8GB DDR4 2666 SO-DIMM Memory Module (AD4S266638G19-R)

DDR4 offers multiple advantages over previous DRAM generations, and ADATA provides the highest quality and the fastest performance. Our Premier DDR4 2666 SO-DIMM memory modules for notebooks arrive in convenient 8GB to 16GB for instant upgrades on any compatible notebook. They deliver faster data transfers than DDR3, coupled with lower energy consumption that reduces heat and extends battery life. Our DDR4 is also optimized to unlock the power of the newest Intel processors.

Extra Fast and Ultra Efficient
ADATA DDR4 modules for notebooks realize new generation advantages in highly reliable and cost-effective products. DDR4 brings higher performance thanks to faster frequencies compared to DDR3, going up to 2666MHz. It does this while operating at a low 1.2V, which is 20% less than DDR3 in terms of energy consumption.

 Meets Demanding Standards for New-Generation Platforms
● Complies with JEDEC standards
● RoHS compliant
● Supports Intel Skylake and Coffee Lake platforms, future-proof for Kaby Lake & Cannon Lake platforms


Technical Details

Brand : Adata
Model : AD4S266638G19-R

Specifications
Module Type : SO-DIMM
Form Factor : Standard 1.18" height
Memory Type : DDR4
Standard  : JEDEC
Interface  : 260-pin
Density : 8GB
Speed : 2666MHz
CAS Latency : CL 19-19-19
Power Supply : VDD and VDDQ = 1.2V ± 0.06V
DRAM activation power supply : VPP = 2.5V ( +0.25V / -0.125V )
DRAM spec / VCC  : DDR4 STD 1.2V
Operating temperature : 0°C to 85°C
