Lian LI LANCOOL 3R-W White Premium Mid-Tower Chassis (G99.LAN3RW.IN)



Open the left and right side tempered glass panels by the aluminum door handles.

 The top, front, and bottom of the case can each fit a 360mm radiator.

The design of the storage trays has been revised to include modularity. Each unused HDD/SSD tray can be individually

removed.



  2 x Magnetic hinged back side cable covers, easier to open and still removable for unrestricted access. II.) 3+5 velcro channel straps : 4 small straps help route the CPU and fan cables, and another small one for shorter 24 pin cables, while 3 large ones are for the remainder of the cables. III.) Sliding front side cable cover (also can mount distro plate) By loosening a screw behind the motherboard tray, the bar can slide to adapt for wider motherboards and let the user customize the curve of their cables passing through.Lancool III RGB includes 3 x 140 ARGB fans at the front and 1 x 140 PWM fan at the rear



Lancool III has a fine mesh top, front and lower sides panels. Opening the left and right tempered glass panels is easy with the front aluminum door handles.



In the main chamber, the top, front, and bottom of the case can each fit a 360mm radiator.



Improved cable management includes the magnetic hinged rear cable covers, which are easier to open and removable for full access. Eight velcro-channel straps are located in key points, with 4 around the rear CPU cutout for cable routing, a small one at the bottom for short 24-pin cables, and 3 large dual-layer straps are at the front.



The design of the storage trays has been revised to include modularity. Each unused HDD/SSD tray can be individually removed.



Brand : Lian LI

Modal : G99.LAN3RW.IN



MODEL : LANCOOL 3RW

Color : White

DIMENSIONS : (D) 526 x (W) 238 x (H) 523 mm

Material : Aluminum4.0mm tempered glass (both sides)

Motherboard Support : EATX(under 280mm)/ATX/MICRO-ATX/MINI-ITX

Expansion Slot : 8



Behind MB Tray: 2 X 2.5ʹʹ SSD

Hard Drive Cage : 4 X 3.5ʹʹ HDD/2.5ʹʹ SSD

Behind the Right-side Shroud Panel: 3 X 2.5ʹʹ SSD Above

PSU Chambe : 3 X 2.5ʹʹ SSD

GPU Length Clearance : 420mm(Max)

CPU Cooler Height Clearance 185mm(Max)

PSU : ATX(under 220mm)

Radiator Support : Front / Top / Bottom : 360mm



 Front (multi-way bracket): 3 X 120mm or 3 X 140mm

Above PSU Chamber : 3 X 120mm or 2 X 140mm Top: 3 X

120mm or 3 X 140mm

Rear: 1 X 120mm or 1 X 140mm

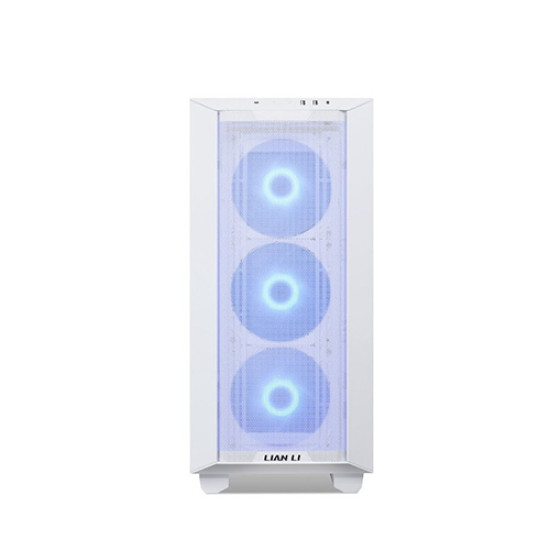

Front: 3 X 140mm ARGB Fans

Rear: 1 X 140mm PWM fan

Dust Filter : 1 x Bottom



Power Button, Reset Button,

C Mode, M mode, USB 3.0 * 2,

Audio *1
