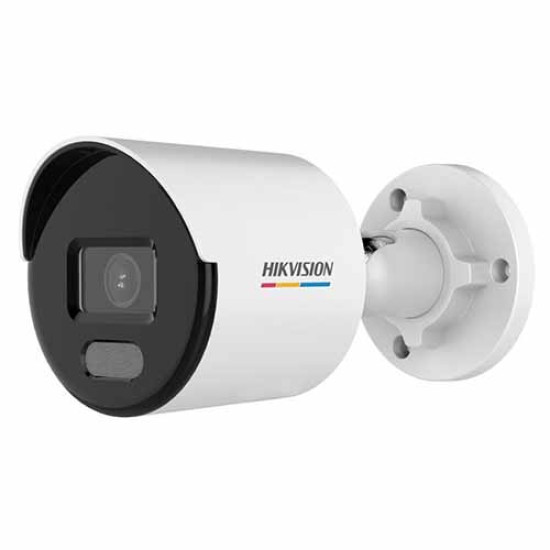

Hikvision 4 MP ColorVu MD 2.0 Fixed Bullet Network Camera (DS-2CD1047G2-L)

Key Features

• High quality imaging with 4 MP resolution
• 24/7 colorful imaging
• Support Human and Vehicle Detection
• Water and dust resistant (IP67)
• Clear imaging even with strong back lighting due to 120 dB WDR
• Efficient H.265+ compression technology
• Support on-board storage up to 256GB (SD card slot)(Optional)
• Built-in microphone for real-time audio security(Optional)

Specification

Camera

Image Sensor : 1/3" Progressive Scan CMOS

Max. Resolution : 2560 × 1440

Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time : 1/3 s to 1/100,000 s

Day & Night : 24/7 color imaging

Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type : Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV :

2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°

4 mm, horizontal FOV: 75°, vertical FOV: 40°, diagonal FOV: 89°

Lens Mount : M12

Iris Type : Fixed

Aperture : F1.0

Depth of Field :

2.8 mm: 2 m to ∞

4 mm: 2.7 m to ∞

DORI

2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

Supplement Light Type : White Light

Supplement Light Range : Up to 30 m

Smart Supplement Light : Yes

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile,Main Profile,High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Region of Interest (ROI) : 1 fixed region(s) for main stream

Audio

Audio Type : -U: Mono sound

Environment Noise Filtering : -U: Yes

Audio Sampling Rate : -U: 8 kHz/16 kHz

Audio Compression : -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate : -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live View : Up to 6 channels

API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

User/Host :

Up to 32 users

3 user levels: administrator, operator, and user

Security :

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Client : iVMS-4200,Hik-Connect

Web Browser :

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) : 120 dB

SNR : ≥ 52 dB

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask : 4 programmable polygon privacy masks

Interface

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone : -U: Yes

Reset Key : -F: Yes

Event

Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage : Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

Power :

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material : Aluminum alloy body

Dimension : Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"

Package Dimension : 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language : English, Ukrainian

General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
