Thermaltake TH360 V2 ARGB Sync All-In-One Liquid Cooler (CL-W362-PL12SW-A)

TH360 V2 ARGB Sync All-In-One Liquid Cooler
TH360 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with three CT120 ARGB fans, the TH360 V2 ARGB is suitable for medium to large chassis that fit 360mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.

New Version, New Design
TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.

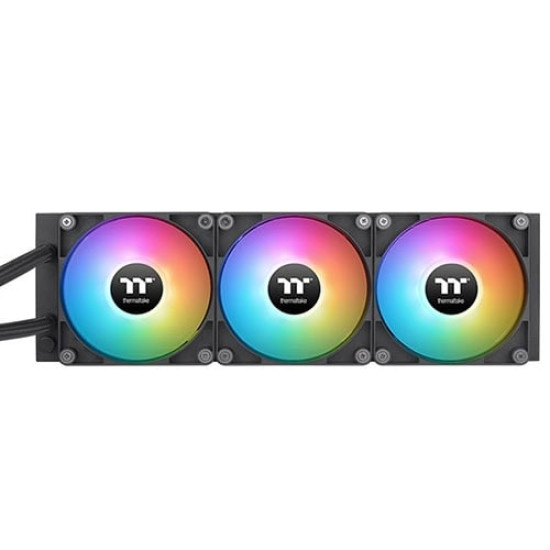

Sync with CT120 ARGB Fans
Utilizing the CT120 ARGB Fans on this model, not only you can match up to some of our chassis’ pre-installed fans, but you can unify your fans with your build!
The CT120 ARGB provides an 57.05 CFM air flow with 2.23 mm-H2O static pressure while maintaining 25.8 dB-A noise level.

Less Cable, Less Mess
The new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 4-pin PWM and 3-pin ARGB ports on your motherboard and shortens the cable length between the fans. We’ve also included one PWM cables and one ARGB cable for you to easily manage your cables while assembling your build.

Keeping Your Cables in Place
You might have experienced easily detached 5V ARGB cables when you assemble your builds. Worry not; this 5V ARGB Connector Clip can guarantee that the cables are correctly connected and won’t get loose in unexpected conditions.

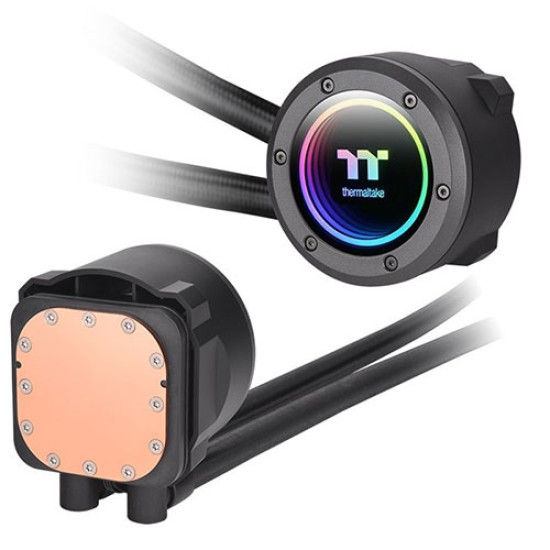

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Technical Detail
Brand : Thermaltake
Modal : CL-W362-PL12SW-A)

Technical Spec
PUMP
Speed : PWM 1500~3300 R.P.M
Rated Voltage : 12 V & 5V
Rated Current : 0.43 A & 0.32 A
Power Input : 5.16 W & 1.6 W
Connector : 2510–4 Pin / 5V ARGB header–3 Pin

WATER BLOCK
Material : Copper

FAN
Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R.P.M
Noise Level : 25.8 dB-A
Rated Voltage : 12 V & 5V
Rated Current : 0.11 A & 0.31 A (one fan)
Power Input : 1.32 W & 1.55 W (one fan)
Max. Air Flow : 57.05 CFM
Max. Static Pressure : 2.23 mm-H2O
Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
Bearing Type : Hydraulic Bearing
Life expectation : 40,000 hrs,25℃

TUBE
Length : 460 mm
Material : Rubber

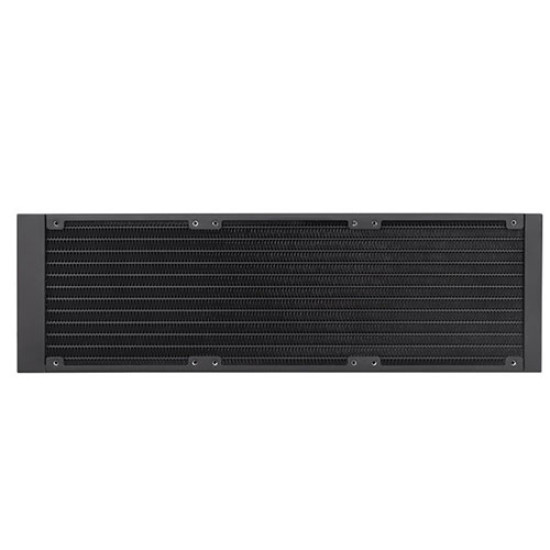

RADIATOR
Dimension : 396 x 120 x 27 mm
Material : Aluminum

COMPATIBILITY
Intel LGA 2066/2011/1700/1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2
